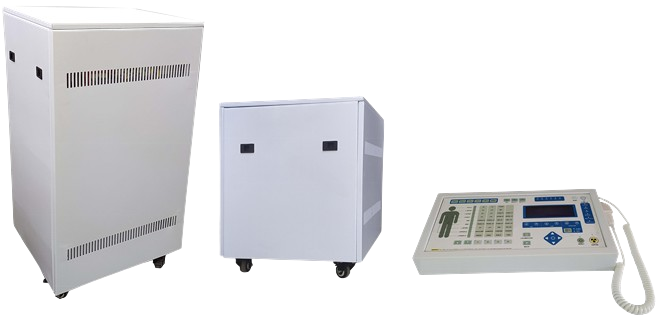

These compact high frequency units operate at a single phase input and are powered by a capacitor bank. The number of capacitors determine the maximum exposure time
| PARAMETER | SPECIFICATION | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage Range | 380V to 460V AC, 50Hz, 3Phase | ||||||||||||||||||||
| Radiographic kV Range | 40kV DC to 125kV DC | ||||||||||||||||||||
Radiographic mA Range | 25mA to 800mA | ||||||||||||||||||||
| Radiographic mAs Range | 0.25 to 800mAs | ||||||||||||||||||||
| Fluoroscopic kV Range | 40kV DC to 100kV DC | ||||||||||||||||||||
| Fluoroscopic mA Range | 0.5 to 5mA | ||||||||||||||||||||
| Maximum Output Power |
| ||||||||||||||||||||
| Application | Radiography & Fluoroscopy (optional) | ||||||||||||||||||||
| HF Generator Frequency | 40kHz | ||||||||||||||||||||
| Protections | Over Voltage, Over Current, Over Temperature, Earth Fault, Filament Fault, Rotor Fault and Single Phase | ||||||||||||||||||||
| AEC | Optional | ||||||||||||||||||||
| Tube Compatibility | Toshiba E7239 / E7242 / (E7252 for 50kW) | ||||||||||||||||||||
| Remote Control | Touch Screen / Keyboard | ||||||||||||||||||||
| Housing (LxWxH) in MM | MS cabinet with nylon wheels (483 x 432 x 810; 580 x 420 x 810 for RF unit) |
