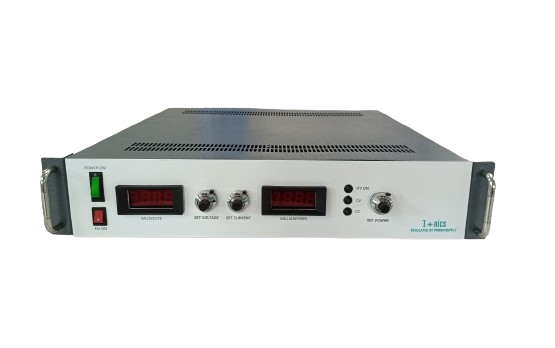

This series of power supplies integrates DC power supply with pulsing components to give a compact unit for ease of operation. General applications include sputtering, electroplating, plasma research, etc.
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 230V ±10% AC, 50Hz, single phase / 415V ±10% AC, 50Hz, three phase |
| Output Voltage Pulsed Mode | 10kV / 20kV / 30kV |
| Output Power | 1kW |
| Polarity | Positive / Negative |
| Output Frequency | 50Hz to 25kHz |
| Duty cycle in pulse Mode | 10% – 80% |
| Mode of Operation | Pulse |
| Regulating Mode | Constant Voltage |
| Settings & Readouts |
• (Through front panel console) Settings-Voltage, current, frequency, duty cycle Read-outs- Voltage, current, frequency, duty cycle Faults- OV, OC, OT |
| Protections | Against over load, short-circuit and arc |
| Front Panel |
Power ON-OFF switch / MCB ON-OFF Main ON indication Console |
| Back Panel |
Socket for mains input with 250V, 10A 3 conductor power cord of 1.5 meters / Terminal block for 3 phase input Connector for HV output Fuse holder with Fuse Stud for grounding the unit |
| Topology | PWM-controlled switch mode |
| Switching Device | IGBT / MOSFET |
| Cabinet | 19” rack, powder coated |
