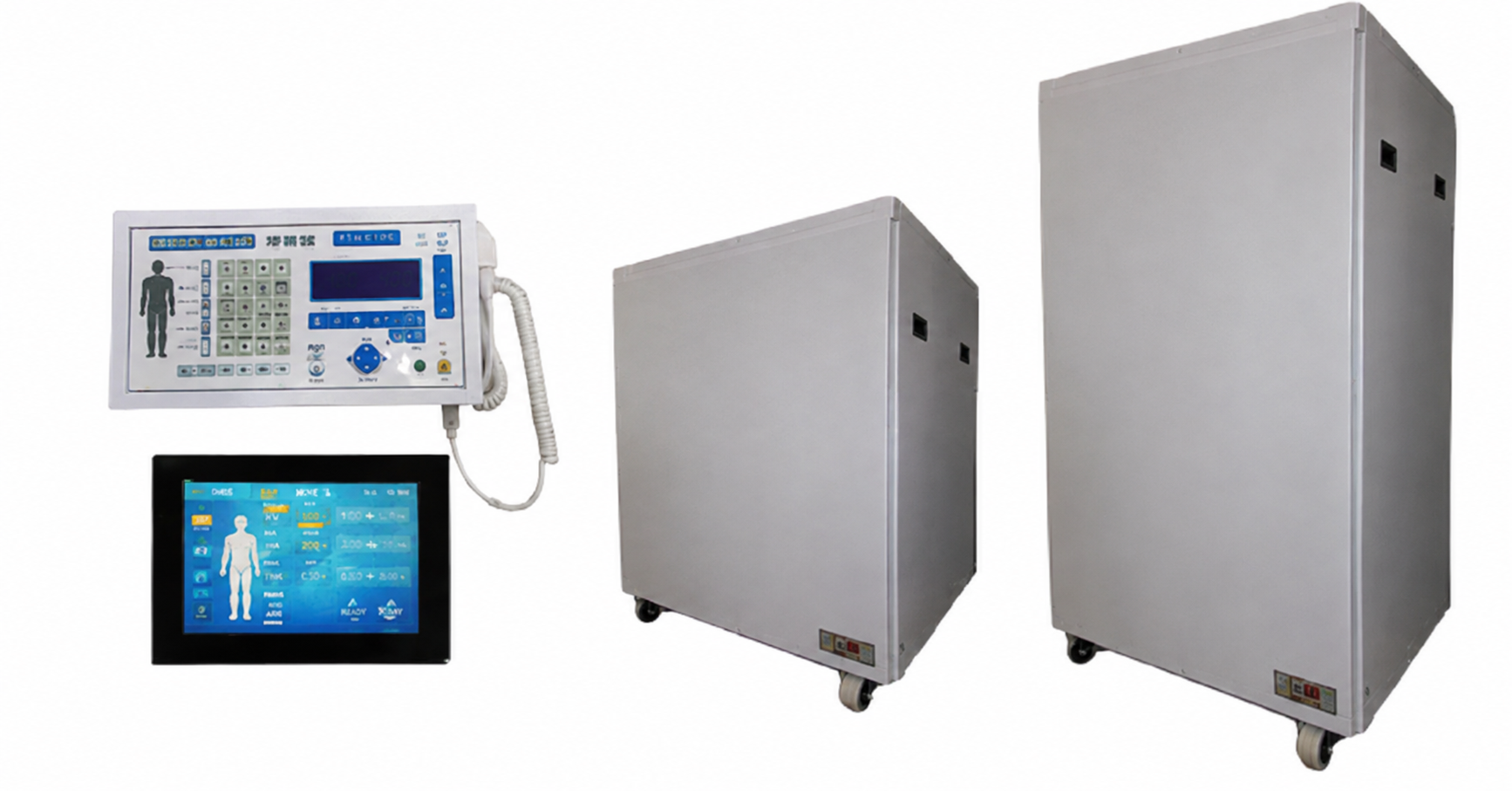

These compact high frequency units operate at single phase input and are powered by a capacitor bank. The number of capacitors determine the maximum exposure time.
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| PARAMETER | SPECIFICATION | ||
| Input Voltage Range | 207V to 253V AC, 50Hz, 1Phase | ||
| Input Current | 13Amps | ||
| Radiographic kV Range | 40kV DC to 125kV DC | ||
| Radiographic mA Range | 25mA to 500mA | ||
| Maximum Output Power |
XR15P1
180mA at 80kV150mA at 100kV 120mA at 120kV |
XR32P1
400mA at 80kV320mA at 100kV 250mA at 125kV |
XR40P1
500mA at 80kV400mA at 100kV 320mA at 125kV |
| Maximum mAs* | Upto 200mAs | ||
| Application | Radiography & Fluoroscopy (optional) | ||
| HF Generator Frequency | 40kHz | ||
| Protections | Over Voltage, Over Current, Over Temperature, Earth Fault, Filament Fault and Rotor Fault | ||
| AEC | Optional | ||
| X-Ray Tube Compatibility | Canon E7239 / E7242 | ||
| Remote Control | Touch Screen / Keyboard | ||
| Housing (LxWxH) | MS cabinet without nylon wheels (482.6mm x 431.8mm x 810mm) | ||
| Capacitor Bank Housing (LxWxH) | MS cabinet for capacitor bank without nylon wheels (444.5mm x 444.5mm x 510mm) | ||
