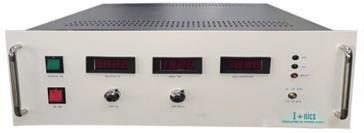

This series of power supplies generate high voltage pure sine wave output at variable amplitude & frequency and mainly find application in plasma research. These units are housed in compact 19” racks to give a regulated output
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 230V ±10% AC, 50Hz, single phase |
| Output Voltage | 20kV peak to peak |
| Output Power | 1kW peak to peak |
| Output Waveform | Sine wave |
| Line Regulation | ±1% for ±10% variation in input voltage |
| Frequency Range* | 1kHz to 20kHz OR 10kHz to 50kHz (2 models) |
| Regulating Mode | Constant voltage |
| Voltage & Frequency Control | By 10-turn potentiometers on the front panel |
| Protections |
Against over load, short-circuit and arc During short circuit, power supply trips & to be reset manually |
| Front Panel |
Power ON/OFF switch with indication HV ON/OFF switch with indication 3½ digit voltage, frequency and current meters 10-turn potentiometers for voltage and frequency control LED indication for fault trip Push button for trip reset |
| Back Panel |
Socket for mains input with 250V, 10A 3 conductor power cord of 1.5 meters Fuse holder with fuse Terminal for HV output with 10ft of detachable high voltage cable Stud for grounding the unit |
| Cabinet | 19” rack, 4U, powder coated |
