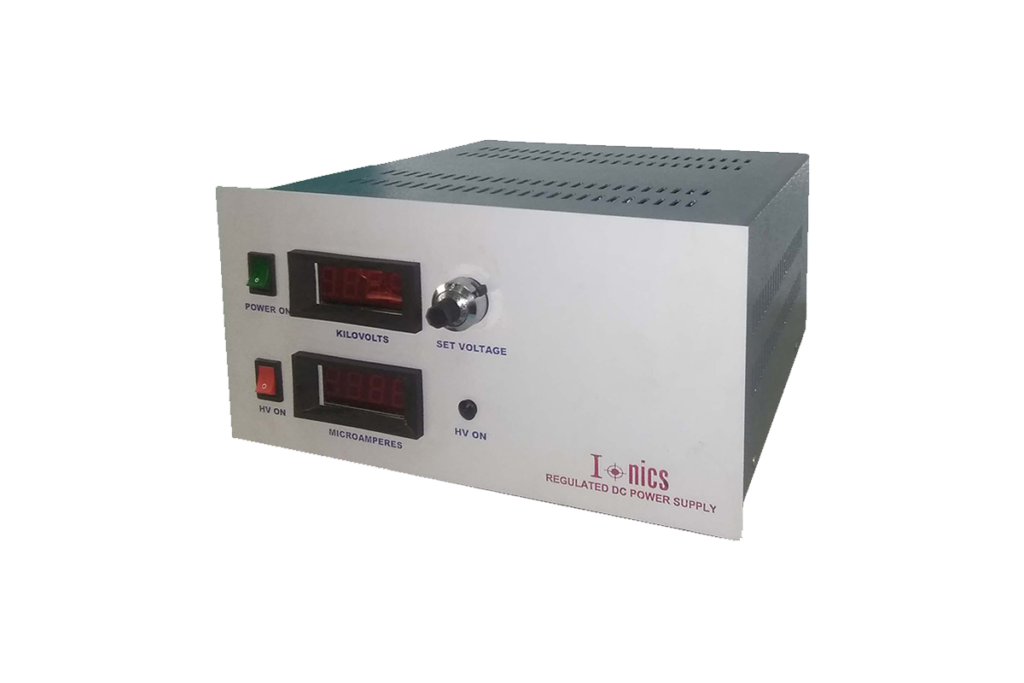

This series of power supplies incorporate the high frequency switch mode technology to give highly regulated panel mountable portable units with kV range varying from 10kV to 60kV catering to a wide variety of scientific and industrial applications.
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 115V or 230V± 10% AC, 50Hz, single phase |
| Output Voltage* | 0 to 10/20/30/40/50/60kV DC |
| Output Current* | 0 to 400µA / 1mA |
| Polarity* | Positive / Negative |
| Line Regulation | <0.05% for±10% variation in input voltage |
| Load Regulation | <0.01% for 10 to 100% load variation |
| Stability | <0.01%hour after 1 hour warm up |
| Regulating Mode | Constant Voltage |
| Voltage control(From zero to rated kV) | By external 10-turn potentiometer with lockable counting dial |
| Protections | Against overload, arc and short-circuit During short circuit, power supply trips & to be manually reset to restart |
| Front Panel | Power ON/OFF switch
HV ON/OFF switch with indication 3½ digit voltage and current meters 10-turn potentiometers for voltage and current control Constant voltage – constant current mode indication LED indications for faults |
| Back Panel | 10pin terminal block Fuse holder with fuse RF connector for HV output Stud for grounding the unit |
| Topology | High Frequency Switch Mode |
| Size (W x D x H) | 10" x 10" x 5" for 10kV to 50kV & 11" x 11" x 6" for 60kV |
| Output cable | 1.5meters of HV DC cable |
