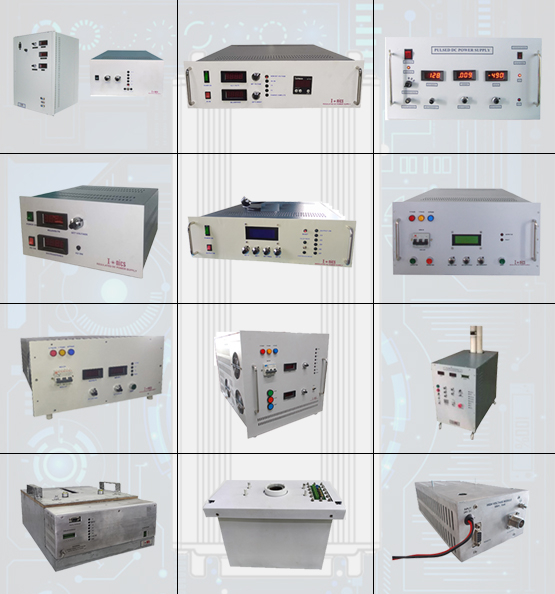

IONICS, an ISO 9000 company, specializes in the design and development of highly regulated High Voltage DC power supplies with output voltage ranges upto 150 kV, miniature High Voltage modules with output voltage upto 60kV and High Current DC regulated power supplies with output current upto 1000A.

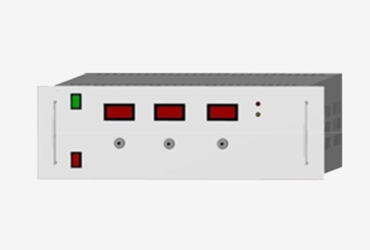

These power supplies are based on the latest SMPS technology and offer low ripple, high stability and high regulation. These compact units are housed in 19" racks and can be customized for specific applications.

SELECT POWER SUPPLIES

CAPACITOR CHARGING/TESTING

Upto 150kV, 30kW
Back EMF Protected
RF Noise Protected

HIGH CURRENT

Upto 1000A, 50kW
High Stability upto 50 PPM
Precision Regulated

DC - PULSED

Upto 800V, 10kW
Pulsed & DC in Single Unit
Frequency & Pulse Width Control

SINE WAVE

Upto 20kV, 500W
Frequency & Voltage Control
High Frequency Stability

ASSYMETRIC BIPOLAR PULSED

+40V to -800V, 50W to 5kW
Pulsed & Continuous
Frequency & PW Control

AC FLOATING

Upto 100V AC, 5kW
Negligible Leakage Current
Floating on 150kV

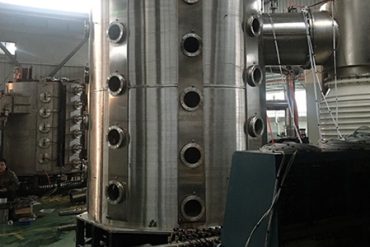

SPUTTERING

Upto 1kV, 5kW
Low Stored Energy
Efficient Arc Sustaining

EBW / EBM

Upto 100kV, 40kW
Acceleration, Filament, Bias & Auxilliary Supplies

HIGH FREQUENCY X-RAY GENERATOR

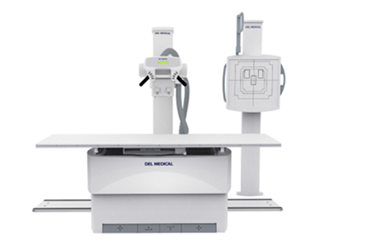

MEDICAL X-RAY

Upto 32kW
Superior Image Quality
Lower Radiation per Exposure
Tablet Based Controller

INDUSTRIAL X-RAY (NDT)

Upto 160kV, 800W
Superior Image Quality
Lower Radiation per Exposure
For Continuous Duty

MONOBLOCK FOR C-ARM

3.5kW, 6kW, 10kW, 15kW
Compact & light weight
Lower Radiation per Exposure
Tablet Based Controller
