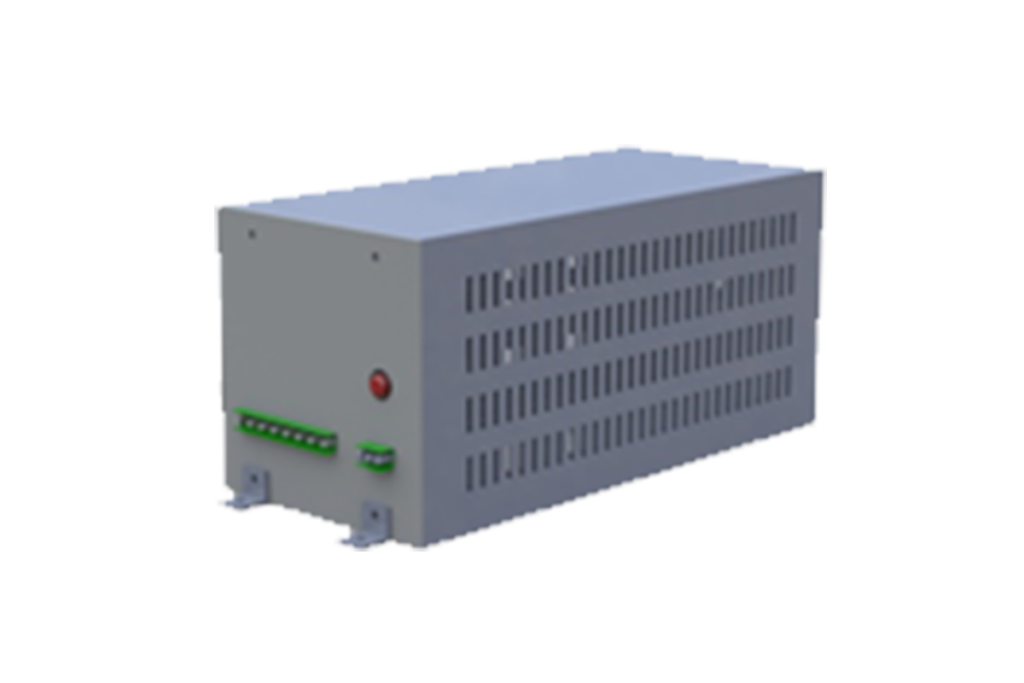

This series of power supplies incorporate the high frequency switch mode technology to give highly regulated panel mountable portable units with kV range varying from 1kV to 10kV catering to a wide variety of scientific and industrial applications.
| PARAMETER | SPECIFICATION |
|---|---|
| Input Voltage | 230V AC, ±10%, 50Hz |
| Output Voltage Range* | 1kV to 10kV DC |
| Output Current Range* | 0.5mA / 1mA |
| Output Power Range | Upto 10W |
| Polarity* | Positive / Negative |
| Ripple | ≤0.1% rms at rated output |
| Line Regulation | < 0.05% for ±10% variation in input voltage |
| Load Regulation | < 0.1% for 10 to 100% load variation |
| Stability | < 0.05% hour after 1 hour warm up |
| Regulating Mode | Constant voltage-Constant current |
| Voltage & Current Control | By external 0 to10-turn potentiometer with lockable counting dial |
| Protections | Against flash over to ground and short-circuit |
| Controls & Signals through Pluggable Connector | 10V DC reference 0 to 10V DC signals for voltage & current control 0V to 10V DC signals for voltage & current monitoring HV enable (Active low) |
| RFront Panel | 3 way 0.2” pluggable connector for 230V AC input Fuse holder with 10A fuse 12 way 0.2” pluggable connector for output controls |
| Back Panel | Terminal for HV output with 1meter of detachable high voltage cable A stud for grounding the power supply |
| Topology | High frequency PWM-controlled switch mode type |
| Switching Device | MOSFET |
*Optional. To be specified by the user.
