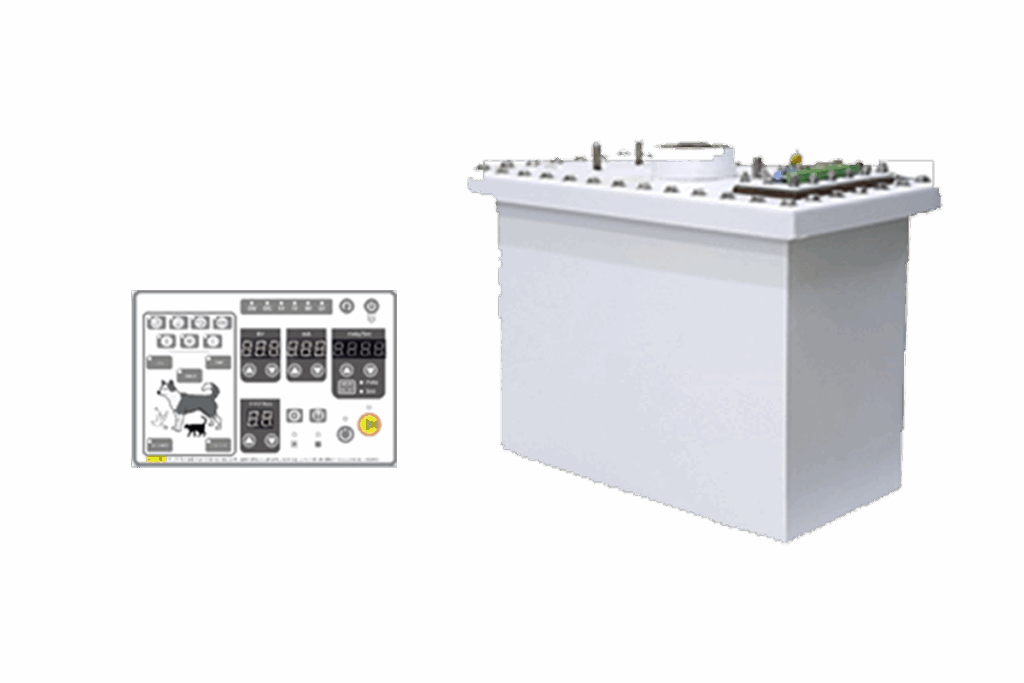

The HF Mobile X-ray Generator consists of an inverter and oil-filled tank which houses the high voltage transformer and tube. It has been designed and developed for OEM application in Radiography for veterinary application. The high radiation output allows for lower kV per exposure, shorter exposure and superior imaging.
| PARAMETER | SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 230V ±10% AC, 50Hz, single phase | |||||||||
| Maximum Output Voltage & Power |
|
|||||||||
| HF Generator Frequency | 80kHz | |||||||||
| Ripple at the Maximum Power | <2% | |||||||||
| Rise Time to Maximum Power | <3ms | |||||||||
| Protections | Over Voltage, Over Current, Over Temperature, Filament Fault, Earth Fault, Rotor Fault, Inverter Fault. | |||||||||
| Application | Intensive care units and radiology department | |||||||||
| kV Range | 40kV to 100kV for 5 kW 40kV to 120kV for 10kW & 15kW |
|||||||||
| mA Range | 20mA to 300mA | |||||||||
| Modes | APR & Manual | |||||||||
| mAs | 0.1mAs to 50mAs | |||||||||
| Exposure Time | 4ms to 5sec | |||||||||
| User Interface | Keyboard or Touch screen tablet with microcontroller-based control |
